Excavator Track Bolts
>
|
| Place of Origin | Fujian China |
| Brand Name | BRM |
| Model Number | M20 |

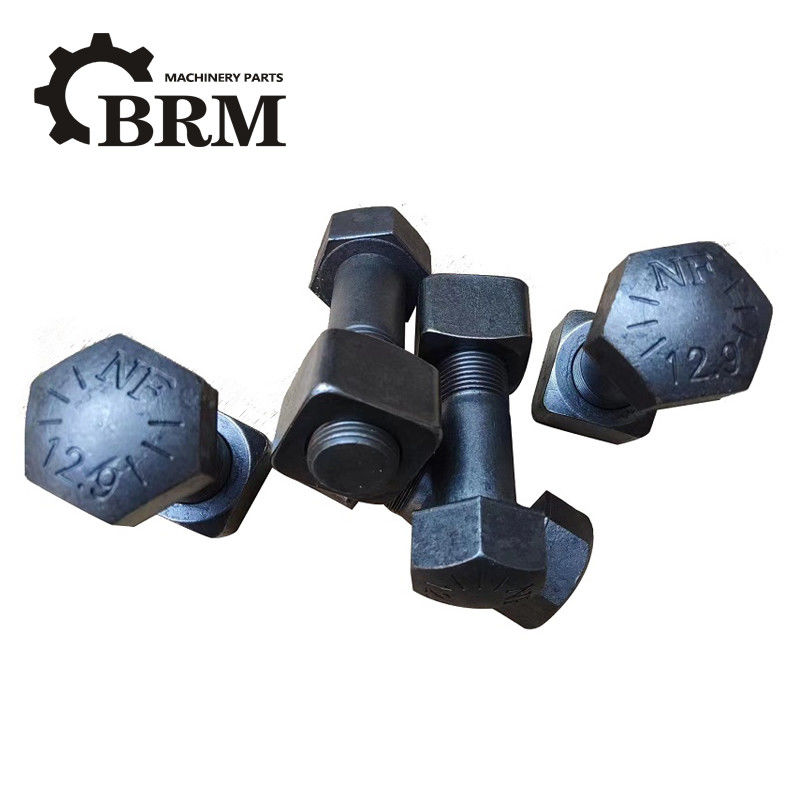

Bulldozer Excavator Assembly Bolts Grade 12.9 Track Shoe Bolts and
Material Grade: 45 Steel;
Quality Level: 12.9, 10.9, 8.8, 6.8, 4.8 Grade
Sizes: M20,M24, M27,M30,M33,M36,M42,M45;
Specifiion: M48 x 180, M48 x 210, M48 x 330, M48 x 370, M48 x 390,M48 x 600, M48 x 700, M48 x 900, M48 x 1080
Bolt-head Shape: oval head, square head,ellipse head;
Service Life Guarantee: 12 months under normal working condition
Appliion: Bolt Units for SAG Mill dia.7.39m
Destination: Export to Russia
Special Features:
1. The high strength bolts have been widely used in large ball mills up to dia.12-meter mills.
2. The high strength screws can be reliably used in small,middle and large cement mills,coal mils and mine mills.
3. The high strength bolts have been properly heat-treated to achieve better mechanical properties.
4. The standard bolt units include one rubber ring,concave washer,spring washer and nut.
| PLOW BOLTS | |||
| DIAMETER | LENGTH (mm) | LENGTH (in.) | REFERENCE NO. |
| 1/2"-13 | 31.8 | 1.25 | 4F3647 |
| 1/2"-13 | 38.1 | 1.5 | 4F3652 |
| 1/2"-13 | 44.5 | 1.75 | 4F3662 |
| 1/2"-13 | 50.8 | 2 | 4F3663 |
| 1/2"-13 | 127 | 5 | 4F4043 |
| 5/8"-11 | 38.1 | 1.5 | 4F3664 |
| 5/8"-11 | 44.5 | 1.75 | 4F3653 |
| 5/8"-11 | 50.8 | 2 | 4F3654 |
| 5/8"-11 | 57.2 | 2.25 | 3F5108 |
| 5/8"-11 | 63.5 | 2.5 | 4F3656 |
| 5/8"-11 | 69.9 | 2.75 | 4F3657 |
| 5/8"-11 | 76.2 | 3 | 4F3658 |
| 5/8"-11 | 88.9 | 3.5 | 4F3665 |
| 5/8"-11 | 95.3 | 3.75 | 4F0391 |
| 5/8"-11 | 101.6 | 4 | 4F3671 |
| 3/4"-10 | 50.8 | 2 | 4F3672 |
| 3/4"-10 | 57.2 | 2.25 | 4F7827 |
| 3/4"-10 | 63.5 | 2.5 | 5J4773 |
| 3/4"-10 | 69.9 | 2.75 | 5J4771 |
| 3/4"-10 | 76.2 | 3 | 4F0138 |
| 3/4"-10 | 79.2 | 3.12 | 1J6762 |
| 3/4"-10 | 95.3 | 3.75 | 5F8933 |
| 3/4"-10 | 104.6 | 4.12 | 1J0962 |
| 3/4"-10 | 114.3 | 4.5 | 4F0253 |
| 3/4"-10 | 117.3 | 4.62 | 1J6761 |
| 7/8"-9 | 63.5 | 2.5 | 5J4772 |
| 7/8"-9 | 69.9 | 2.75 | 6F0196 |
| 7/8"-9 | 76.2 | 3 | 5J2409 |
| 7/8"-9 | 82.6 | 3.25 | 8J2935 |
| 7/8"-9 | 88.9 | 3.5 | 2J2548 |
| 7/8"-9 | 108 | 4.25 | 2J5458 |
| 7/8"-9 | 117.3 | 4.62 | 1J0849 |
| 1"-8 | 63.5 | 2.5 | 3J2801 |
| 1"-8 | 69.9 | 2.75 | 1J5607 |
| 1"-8 | 76.2 | 3 | 4F4042 |
| 1"-8 | 82.6 | 3.25 | 4J9058 |
| 1"-8 | 88.9 | 3.5 | 4J9208 |
| 1"-8 | 95.3 | 3.75 | 4J9208 |
| 1"-8 | 101.6 | 4 | 8J2928 |
| 1"-8 | 114.3 | 4.5 | 6J3528 |
| 1"-8 | 127 | 5 | 6J3527 |
| 1"-8 | 133.4 | 5.25 | 1J2034 |
| 1"-8 | 139.7 | 5.5 | 1J4947 |
| 1-1/4"-7 | 95.3 | 3.75 | 8T9079 |
| 1-1/4"-7 | 101.6 | 4 | 6V6535 |
| 1-1/4"-7 | 104.6 | 4.12 | 5P8823 |
| 1-1/4"-7 | 114.3 | 4.5 | 6V8360 |
| 1-1/4"-7 | 127 | 5 | 5P8361 |
| 1-3/8"-6 | 114.3 | 4.5 | 198-71-21850 |
| 1-3/8"-6 | 139.7 | 5.5 | 198-71-21860 |
| 1-3/8"-6 | 155.6 | 6.13 | 198-71-21870 |
| PLOW NUTS | |||
| DIAMETER | W.A.F. | THICK | REFERENCE NO. |
| 1/2"-13 | 3/4" | 7/16" | 1F7958 |
| 5/8"-11 | 15/16" | 35/64" | 4K0367 |
| 3/4"-10 | 1-1/8" | 41/64" | 2J3506 |
| 7/8"-9 | 1-5/16" | 3/4" | 2J3505 |
| 1"-8 | 1 1/2" | 55/64" | 2J3507 |
| 1"-8 | 1-1/2" | 13/16" | 8J2933 |
| 1-1/4"-7 | 1-7/8" | 1-1/16" | 3K9770 |
| 1-1/4"-7 | 1-13/16" | 1-7/32" | 5P8362 |
| 1-3/8"-6 | 2-3/16" | 1-11/32" | 198-71-21911 |
